Valohr Plato

Superstructure

- 1.500 mm high, covered with plywood on the inside, with tarpaulin on the front
high-strength steel construction with basket and ladder
front wall assembly
- 5 on the sides and 1 on the back, 800 mm high, 180 degrees openable,

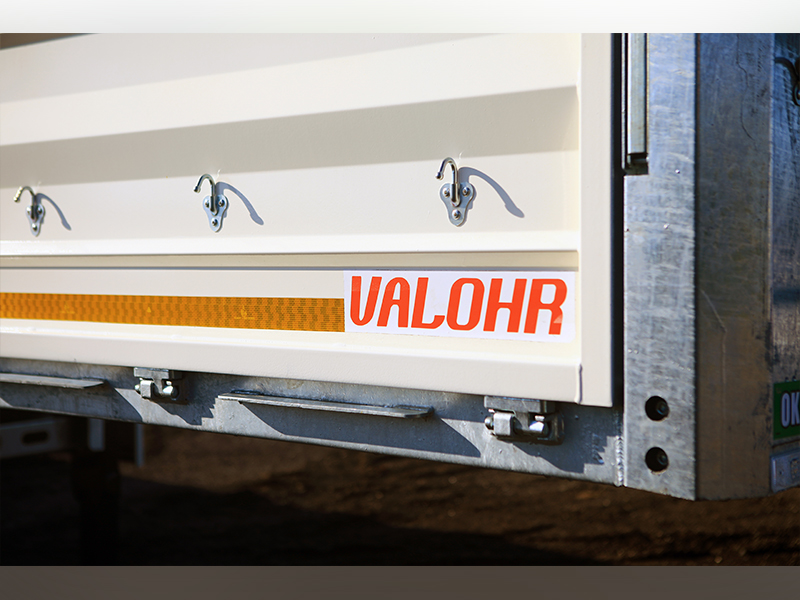

sheet metal/aluminum covers with tarpaulin fastening hooks
- Detachable side cover posts
- 30 mm thick phenolic resin coated plywood flooring

Chassis and Undercarriage

- Chassis assembly consisting of high-strength upper and lower blades, main spar, "I"-sectioned cross-section cross members and side frame sheet, obtained by welding the mirror sheet to the mirror sheet in the middle with an automatic gas metal arc welding machine.
- 2" (50.8 mm) diameter king pin in SAE and DIN standards, detachable with allen bolt
- Double speed -24 tons capacity telescopic legs
- Air suspension system with lowering-lifting valve
- 3 axles with disc brakes, each with a capacity of 9 tons
- Automatic front axle lifting system
- "Traction Help" system, which enables the lift axle to be lifted for a short time while driving
- Double-circuit emergency pneumatic brake in EEC standards
- 2 modules in EEC standards - 2 sensors EBS braking system
- RSS (Roll Stability Support) system that provides driving safety against rollovers
- 6 x 385/65 R 22.5 tubeless single row tires and 11.75-22.5 steel rims
- EEC standards (24 V) lighting system
- Side lamp / reflector in EEC standards
- 15 pin electrical input
- 4 ¼ FRP fenders and 2 waterstops
- Side protective barriers
- Rear R58 approved steel bumper
- Reflective strip application in accordance with regulations
- 2 reflective plates on the back

Accessories

- 1 tool cabinet
- 1 water tank (30 lt)
- Spare wheel carrier with 1 tire
- 2 wheel chocks
- 2x12=24 base load fastening rings
- 2 back docking wedges
- Metal forklift stops under the side covers
- Tool (Wheel Wrench)
- Folding step mounted on the back cover
- Fire cabinet
- Double-sided attachable front wall ladder

Paint

- Chassis assembly hot-dip galvanized protection
- Sheet metal covers and front wall, hot-dip galvanized
-Aluminum caps anodized protection
